Theatrelight RDM/DMX Splitters

Theatrelight RDM/DMX Splitters

by Theatrelight
SKU
$0.00 ex. GST - $600.00 ex. GST
$0.00 ex. GST
$480.00 ex. GST
$480.00 ex. GST - $600.00 ex. GST
$480.00 ex. GST

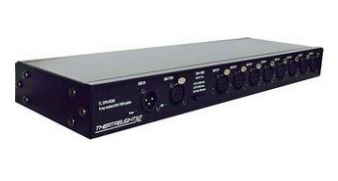

RDM8 DMX Splitters

The RDM8 is a transparent in-line RDM splitter used for connecting a large number of RDM devices such as moving lights, LED Luminaires, smoke machines, dimmers etc to an RDM control panel. It may also be used as a DMX splitter in a DMX only system, or as a filter in an RDM system to prevent RDM commands affecting legacy DMX devices.

It provides bi-directional transfer of data according to the RDM ENSA standard between its floating input (RDM “response” port) and its 8 isolated outputs (RDM “command” ports). The RDM8 is compatible with protocols ANSI E1.11 (DMX) and ANSI E1.20 (RDM).

  • Floating input with through connector
  • LED indicator for RDM/DMX signal input
  • 8 outputs, each isolated to 500VDC from Earth, from each other, and from the input
  • LED indicator for RDM/DMX signals on each output, active both transmitting and receiving
  • Power good LED indicator
  • All outputs use 5 volt RS485 drivers for maximum signal drive and integrity



TLSP-4DMX-RDM 4 way DMX Splitter, standalone, 5 pin XLRs
TLSP-8RDM 8 way RDM/DMX Splitter, rack/wall/bar mount, 5 pin Neutrik XLRs
TLSP-8RDM-P 8 way RDM/DMX Splitter, rack/wall/bar mount, 3 pin fast wiring terminals (indent only)
TLSP-8RDM-3X 8 way RDM/DMX Splitter, rack/wall/bar mount, 3 pin Neutrik XLRs (indent only)
TLSP-8RDM-RJ45 8 way RDM/DMX Splitter, rack/wall/bar mount, RJ45 isolated outputs (indent only)
Choose a Model
