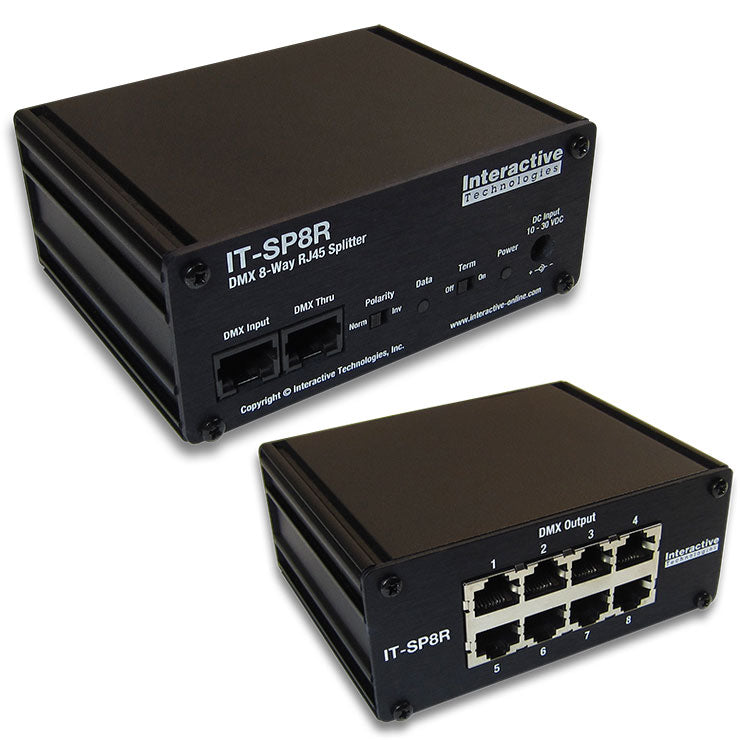

8 Port DMX Splitter with RJ45 Ports

IT-SP8R-AUST

The IT-SP8R is an ultra-compact 8 Port RJ45 DMX Splitter designed for use in installations wired with RJ45 terminated Category 5 (CAT5) cabling.

The DMX Splitter is designed to create multiple independent branches of a DMX signal and/or to extend the usable distance of each branch. Each of the splitter’s 8 output ports generates an independently protected DMX signal that can travel up to 1,800 feet (550 meters).

The IT-SP8R includes a DMX Pass-Thru port for cascading DMX to multiple splitters and provides a built-in DMX Termination switch. Also included is a Polarity Inversion switch which allows the IT-SP8R to easily convert between DMX512 standard wiring and the reversed wiring used by Color Kinetics® devices.

Features:
• Rugged anodized aluminum housing
• 8 Independently protected output ports
• RJ45 Ports for each DMX connection
• DMX Input and DMX Pass-Thru Ports for daisy-chaining multiple splitters
• Transient Voltage Supression (TVS) and Self-Resetting Poly-Switch Fuses for each port
• DMX signal range up to 1,800 feet (550 meters) from each output port
• Compatibility with DMX512 and Color Kinetics® devices
• User-selectable polarity inversion for converting between standard DMX and Color Kinetics® wiring schemes
• User-selectable input line termination switch
• Optional mounting bracket kits for panel, DIN Rail, or truss mounting.
• Ultra-compact design provides 8 DMX ports in just 14in2 (95cm2)

Includes AUS/NZ Power Supply
