ARRI ARRIMAX 18/12

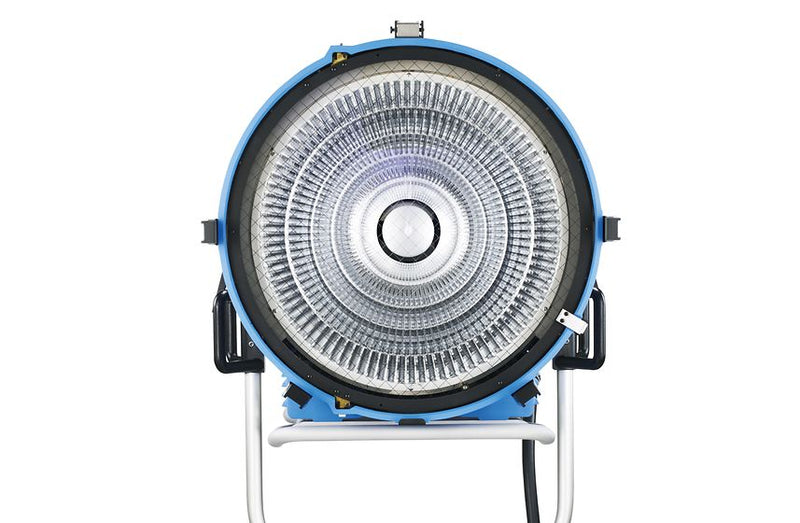

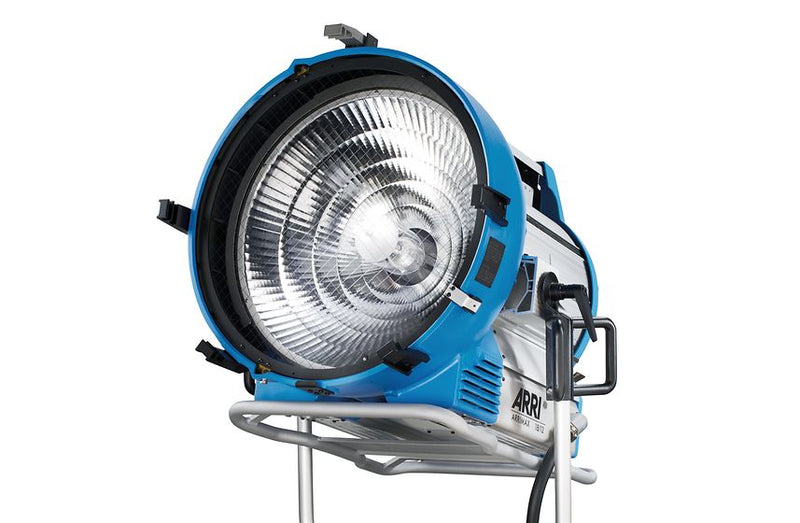

The original Academy Award-winning ARRIMAX remains the ultimate choice for productions requiring maximum light output. The 580 mm (22.8”) diameter, parabolic facetted reflector provides continuous focus adjustment from 15° to 50° beam angle and, since the ARRIMAX does not require a set of spread lenses, shadows are sharp and easily cut.

Safe and easy for both lamp type bases 18/12 kW, 18,000 W single ended lamps use a sturdier GX51 lamp base for which ARRI engineers have designed a special lampholder that alleviates mechanical stress from the lamp pins, now serving only as an electrical connection. The lamp clamping mechanism is self-aligning and uses a rugged, recessed lamp lock handle. To ensure that crews can easily use 12,000 W lamps or versions of 18,000 W single ended lamps with G38 bases, the new lampholder accepts either lamp type with no modification or adjustment.

Features:

  • Lens-less MAX Technology
  • 15° to 50° continuous beam angle: standard reflector
  • 8° to 15° beam angle: spot reflector
  • Easy re-lamping
  • ARRI Dual Pin Width support (GX51/GX38)
  • IP Rating IP23
  • Suitable for high frame rate images
  • Works with motorized yoke "BigBee"
Category Daylight
Series M-Series
Model ARRIMAX 18/12
Mains Plug VEAM
Lamphead Type Open Face with Facetted Reflector, 12,000 / 18,000 W
Reflector MAX Technology reflector made of high purity aluminium
Lamp Type Metal Halide 18,000 W/SE; Metal Halide 12,000 W/SE
Power Consumption 18,000 W / 12,000 W
Voltage Range 225 V / 160 V
Lamp Base GX51 / GX38
Dimming yes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature approx. 5,600 K
Beam Angle 15° to 50° (with 18,000 W lamp)
Weight in kg net* approx. 70 kg
Weight in kg packed* approx. 86 kg
Measurements (HxWxL) incl. Pin in mm* 1270 x 784 x 942 mm
Measurements (HxWxL) excl. Pin in mm* 1155 x 784 x 942 mm
Measurements (HxWxL) Packed size in mm* 1050 x 1170 x 1135 mm
Lens / UV-Protection Glass Diameter in mm 646 mm
Accessory Diameter in mm 740 mm
Barndoor in mm 740 mm
Mounting Spigot 28 mm / 1 1/8" (1.1")
Housing Color Blue/Silver
Protection Class / IP Rating I / IP23
Certifications CE, CB, GS, cNRTLus
