ARRI S60-C SkyPanel Blue/Silver

by ARRI
SKU L0.0007064
Original price $0.00 ex. GST - Original price $0.00 ex. GST
Original price $0.00 ex. GST
$12,878.00 ex. GST
$12,878.00 ex. GST - $12,878.00 ex. GST
Current price $12,878.00 ex. GST

All Prices Shown are Excluding GST.

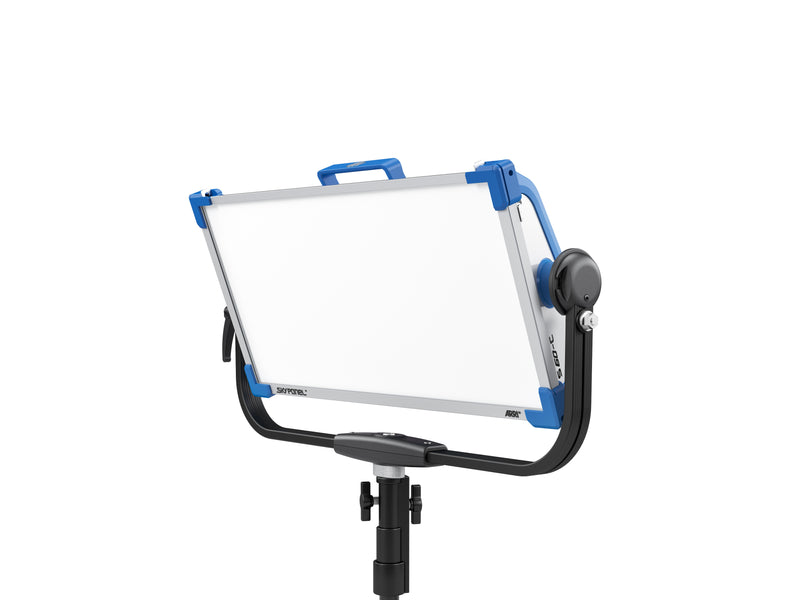

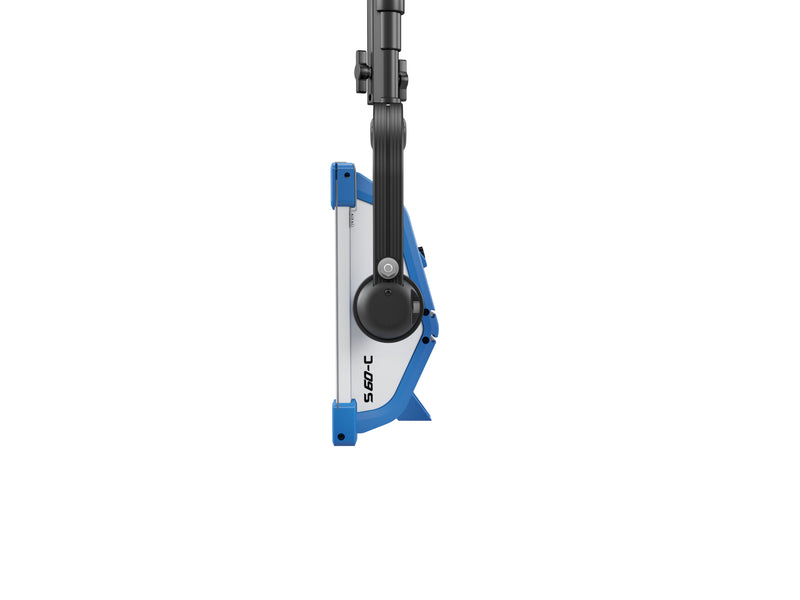

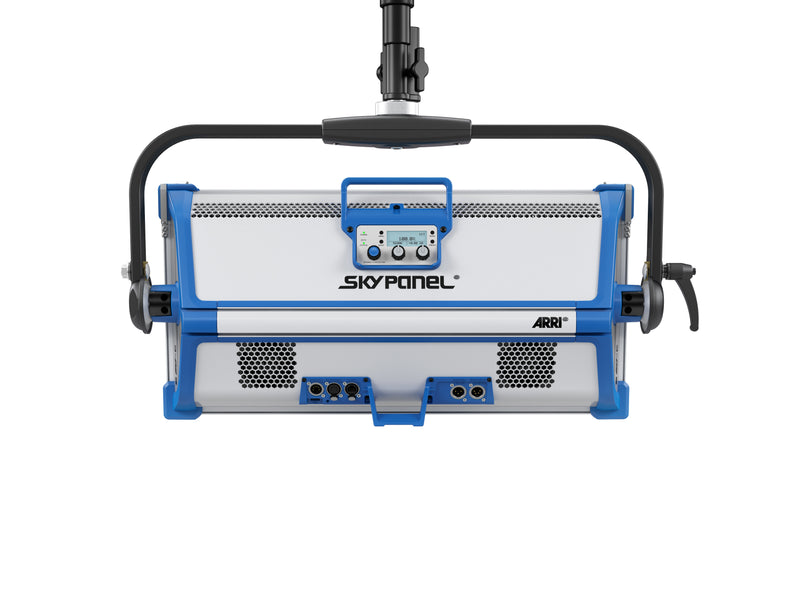

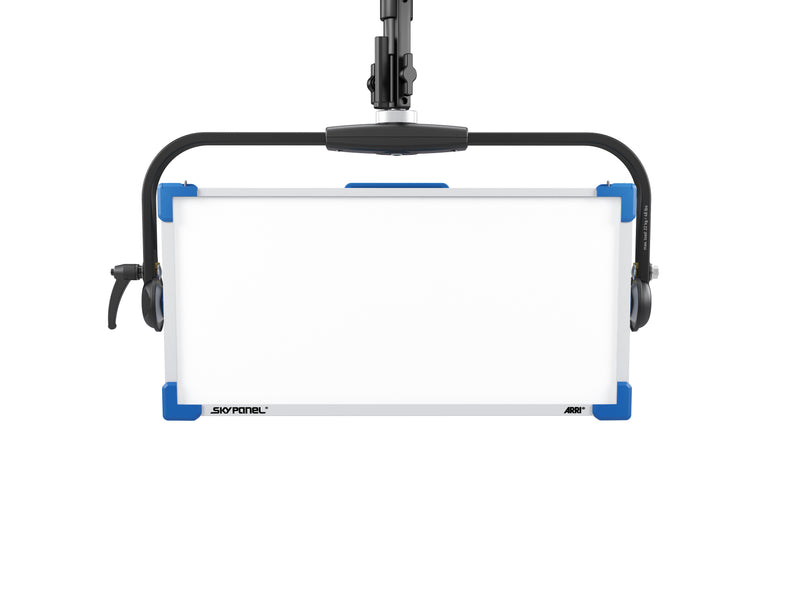

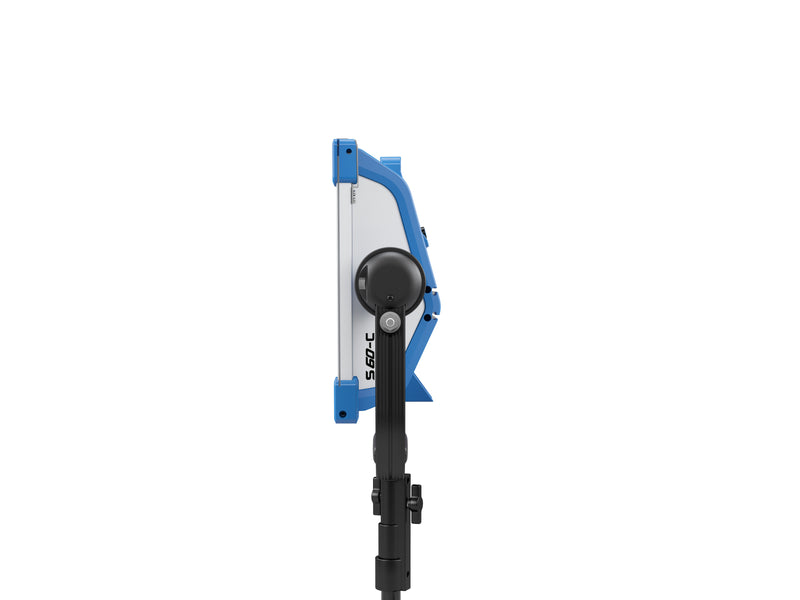

SkyPanel S60-C

Soft Lighting | Redefined

The SkyPanel Family. Different sizes for different applications.

SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.

Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last €“ constructed from resilient materials and assembled by hand with great care. Other features include an on-board battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.

Technical Data

Category LED
Series SkyPanel
Model S60-C
Optical System Soft Diffusion Panel
Light Aperture / Lens Diameter in mm 645 x 300 mm
Light Aperture / Lens Diameter in inch 25.4 x 11.8"
Beam Angle 115° (Half Peak Angle)
Weight in kg net* Manual Version: approx. 13 kg
Pole Operated Version: approx. 14 kg
Weight in kg packed* Manual Version: approx. 21 kg
Pole Operated Version: approx. 22 kg
Measurements (HxWxL) incl. Pin in mm* Manual Version: 566 x 826 x 133 mm
Pole Operated Version: 567 x 796 x 133 mm
Measurements (HxWxL) excl. Pin in mm* Manual Version: 433 x 826 x 133 mm
Pole Operated Version: 452 x 796 x 133 mm
Measurements (HxWxL) Packed size in mm* 470 x 860 x 300 mm
Handling Aluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt
Mounting 28 mm Spigot (Junior Pin)
Tilt Angle +/- 90°
Lamphead Voltage Input 48 V DC
Power Consumption 420 W Nominal, 450 W Maximum
Lamphead Power Connection Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)
Battery Connector Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range 23 to 36 V DC
White Light 2,800 K to 10,000 K continuously variable correlated color temperature
Coloured Light Full RGB+W Color Gamut with Hue and Saturation Control
Power Consumption 100 W Nominal, 115 W Maximum
Power Connection powerCON TRUE1 (Bare Ends / Schuko / Edison)
Battery Connector 4-Pin XLR Connector (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range 23 to 36 V DC
Battery Mode Light Output 50 % of total output
White Light 2,800 K to 10,000 K continuously variable correlated color temperature
Coloured Light Full RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition CRI Average > 95, TLCI Average > 90
Green-Magenta Adjustment Continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming 0 to 100 % continuous
Control On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Wireless Control Not integrated, via SkyLink
Remote Device Management (RDM) DMX Setup, Hour Counter and Standard RDM Commands
Software / Mini-USB Interface DMX Setup, Fixture Status and Firmware Upgrade through PC
Housing Color Blue/Silver, Black
Ambient Temperature Operation -20 to +45° C (-4 to +113° F)
Protection Class / IP Rating III / IP20
Esitmated LED Lifetime 50,000 hours
Estimated Color Shift Over Lifetime (CCT) +/- 5 %
Certifications CE, CB, ENEC, cNRTLus, FCC, PSE
Power Supply Unit S60/S120 PSU
Power Supply Input Range 110 to 240 V ~, 50/60 Hz
Power Supply Output Range 48 V DC
Power Input Connection powerCON TRUE1 (Bare Ends / Schuko / Edison)
Power Output Connection Female 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Weight in kg approx. 4 kg
Measurements (HxWxL) in mm* 91 x 191 x 383 mm
Control On-Board On/Off Switch
Mounting SkyPanel PSU Super Clamp Adapter / Rail Mount Adapter
Certifications CE, CB, ENEC, cNRTLus, PSE
