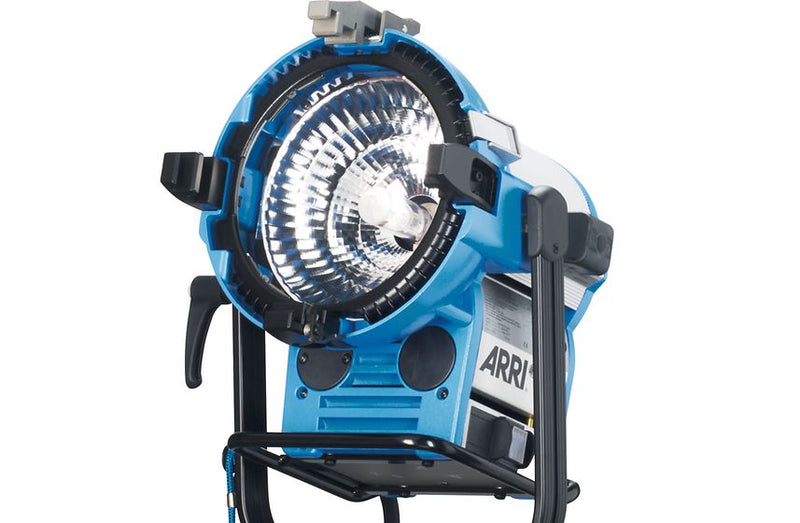

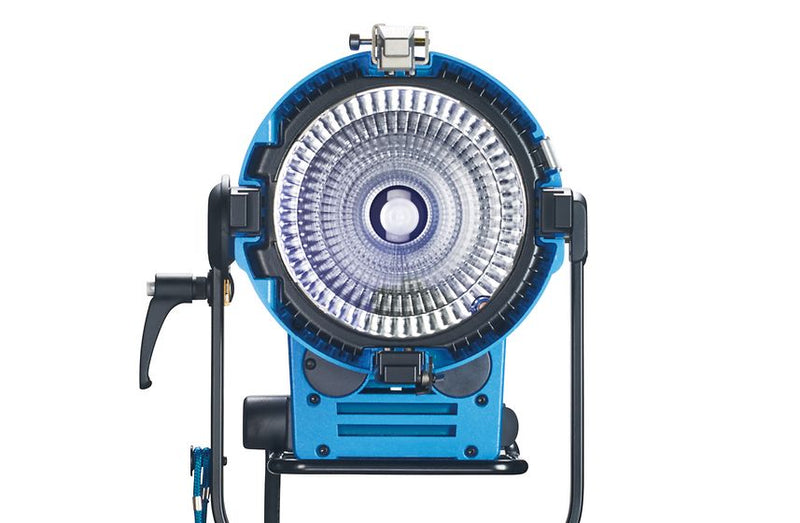

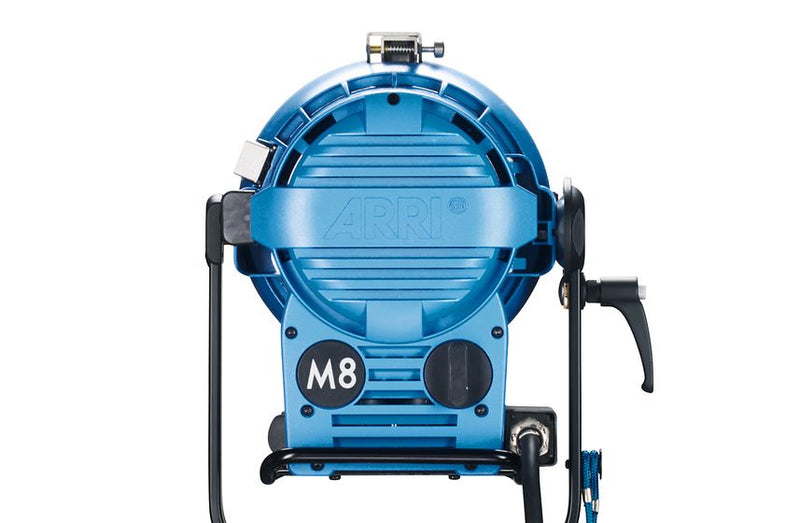

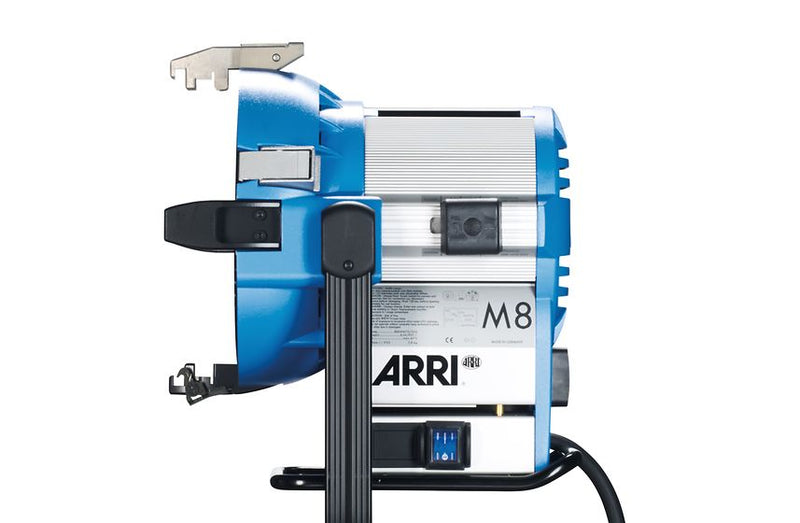

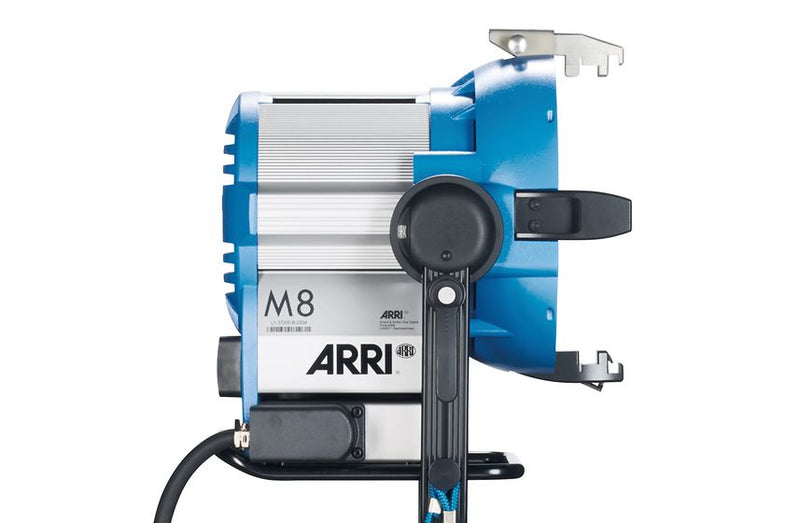

Arri M8 Daylight Open Face Blue/ Silver c/w 0.5m Cable. Head Only

ARRI M8 Daylight Open Face Blue/ Silver c/w 0.5m Cable. Head Only

by ARRI
SKU L1.37200.B
$0.00 ex. GST - $0.00 ex. GST
$0.00 ex. GST
$6,077.00 ex. GST
$6,077.00 ex. GST - $6,077.00 ex. GST
$6,077.00 ex. GST

All Prices Shown are Excluding GST.

ARRI M8 Head Only

The M8 is the latest and smallest lighting fixture in ARRI’s highly successful M-Series of HMI lampheads. Like the rest of the M-Series, the M8 is equipped with MAX Technology, a unique, patented reflector design that unifies the advantages of a Fresnel and a PAR fixture.

The combination of an open face design and the unrivalled efficiency of the MAX Technology reflector makes the M8 exceptionally bright; in fact, the light output produced by its 800 W lamp comes close to the output from a 1,200 W Fresnel or PAR (with lens). The unit can be focused between 15° and 60° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. By eliminating the need for bulky, easily breakable spread lenses, the M8 will speed up workflows on set.

Features

  • Lens-less MAX Technology: Easy to use
  • Light output comparable to 1,200 W fixture
  • Smallest lamphead with MAX Technology reflector
  • Highly mobile for a wide range of uses
  • Focusable between 15° and 60°
  • Cross-Cooling allows safe operation even at 90° tilt
  • Uses existing 230 & 245 mm accessories from ARRI True Blue D12 and from Chimera
  • Compensation for Cable Losses (CCL)
  • Uses existing 575 to 1,800 W cables with international connector
  • Suitable for high frame rate images
  • IP Rating IP23
  • Tilt locks to hold heavy accessories stable
Category Daylight
Series M-Series
Model M-Series M8
Mains Plug VEAM
Lamphead Type Open Face with Facetted Reflector, 800 W
Reflector MAX Technology reflector made of high purity aluminium
Lamp Type Metal Halide 800 W/SE (Only 800 W, no 575 W lamps)
Power Consumption 800 W
Voltage Range 90 to 130 V / 180 to 250 V
Lamp Base G22
Dimming yes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature 6,000 K
Beam Angle 15° to 62°
Weight in kg net* approx. 8.5 kg
Weight in kg packed* approx. 10.7 kg
Measurements (HxWxL) incl. Pin in mm* 591 x 350 x 310 mm
Measurements (HxWxL) excl. Pin in mm* 458 x 350 x 310 mm
Measurements (HxWxL) Packed size in mm* 440 x 400 x 460 mm
Lens / UV-Protection Glass Diameter in mm 200 mm
Accessory Diameter in mm 230 mm
Barndoor in mm 245 mm
Mounting Spigot 28 mm / 1 1/8" (1.1")
Housing Color Blue/Silver
Protection Class / IP Rating I / IP23
Certifications CE, CB, GS, cNRTLus
