Arri M18 Daylight Open Face Blue/ Silver c/w 0.5m Cable

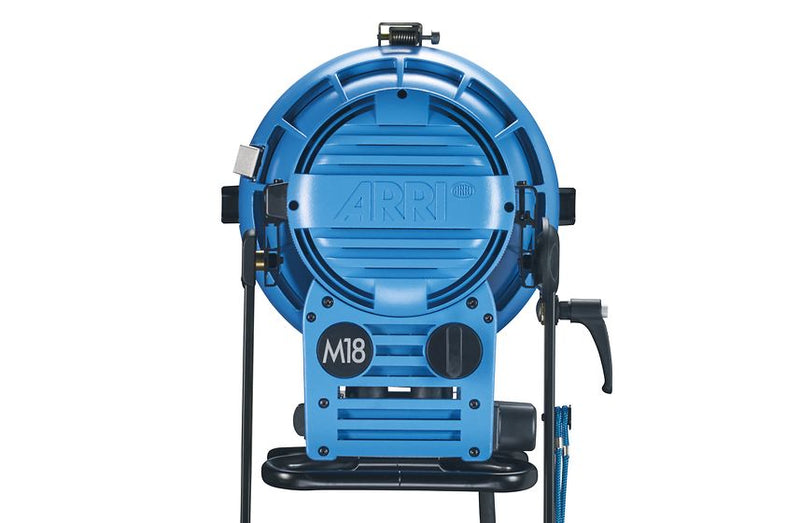

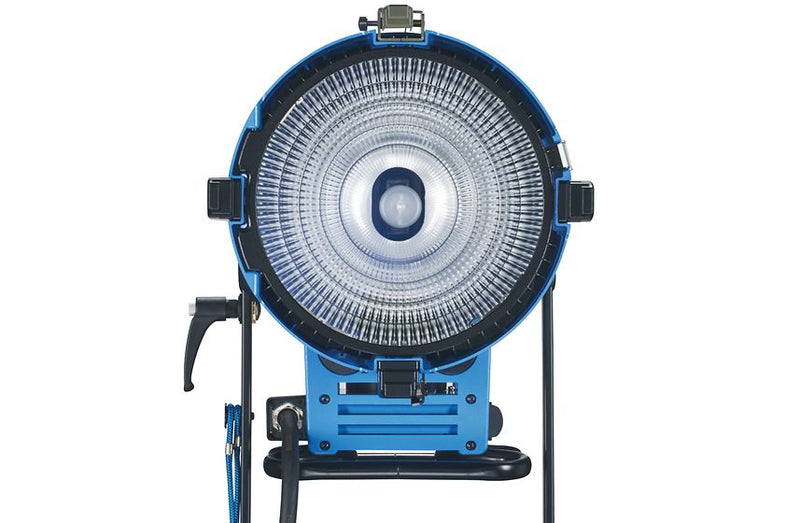

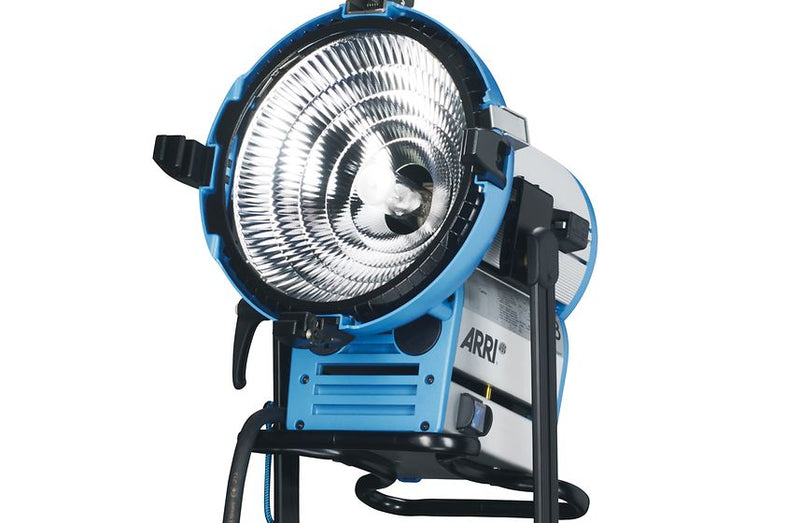

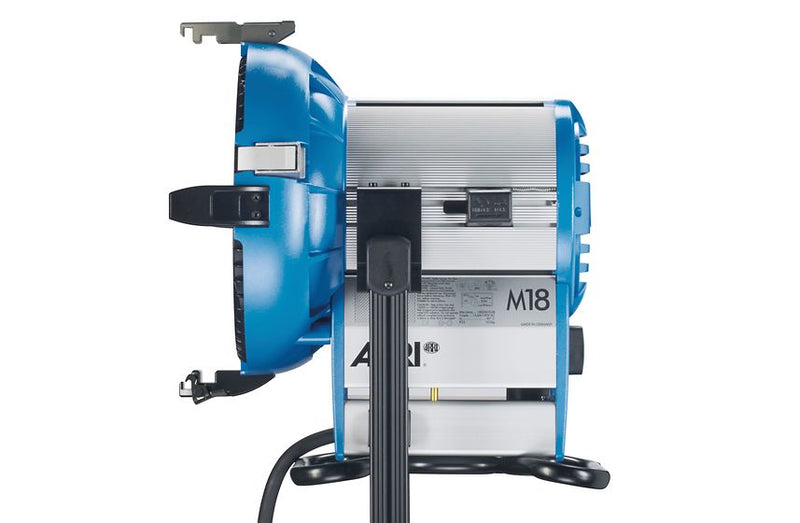

ARRI M18 Daylight Open Face Blue/ Silver c/w 0.5m Cable

by ARRI
SKU L1.37600.B
$0.00 ex. GST - $0.00 ex. GST
$0.00 ex. GST
$8,446.00 ex. GST
$8,446.00 ex. GST - $8,446.00 ex. GST
$8,446.00 ex. GST

All Prices Shown are Excluding GST.

ARRI M18 Head Only

The M18 is an 1,800 W open face lamphead, combining the Academy Scientific and Engineering Award-winning lens-less optical technology of the ARRIMAX with the innovative True Blue design. The result is an extremely powerful lamphead, as small as a 1,200W PAR but with a 70 % higher light output. The M-Series M18 fixture is adjustable from 20° to 60° without requiring spreader lenses.

Features

  • Lens-less MAX Technology: Easy to use
  • New 1,800 W lamp
  • Virtually the same size as a 1,200 W lamphead but more than 70 % brighter
  • Runs from most domestic sockets world-wide
  • Uses existing 575/1,200/1,800 W cables
  • Can also be used with 1,200 W lamps and ballasts
  • Cross Cooling allows safe operation at any tilt angle
  • IP Rating IP23
  • True Blue tilt lock holds even heavy Chimeras
  • Easy maintenance
Category Daylight
Series M-Series
Model M-Series M18
Mains Plug VEAM, Schaltbau (GTV-Standard)
Lamphead Type Open Face with Facetted Reflector, 1,200 / 1,800 W
Reflector MAX Technology reflector made of high purity aluminium
Lamp Type Metal Halide 1,800 W/SE; Metal Halide 1,200 W/SE
Power Consumption 1,800 W / 1,200 W
Voltage Range 100 V / 140 V
Lamp Base G38
Dimming yes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature 6,000 K
Beam Angle 20° to 60° (with 1,800 W lamp)
Weight in kg net* approx. 11.5 kg
Weight in kg packed* approx. 14.9 kg
Measurements (HxWxL) incl. Pin in mm* 658 x 388 x 393 mm
Measurements (HxWxL) excl. Pin in mm* 525 x 388 x 393 mm
Measurements (HxWxL) Packed size in mm* 530 x 510 x 555 mm
Lens / UV-Protection Glass Diameter in mm 276 mm
Accessory Diameter in mm 330 mm
Barndoor in mm 344 mm
Mounting Spigot 28 mm / 1 1/8" (1.1")
Housing Color Blue/Silver
Protection Class / IP Rating I / IP23
Certifications CE, CB, ENEC, cNRTLus
