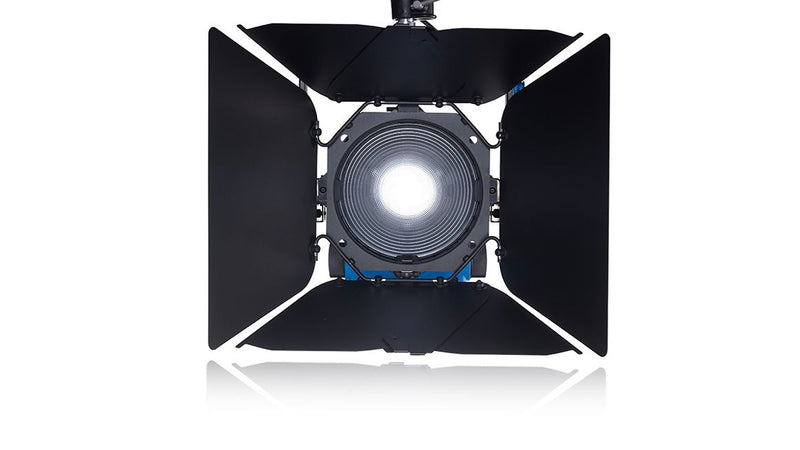

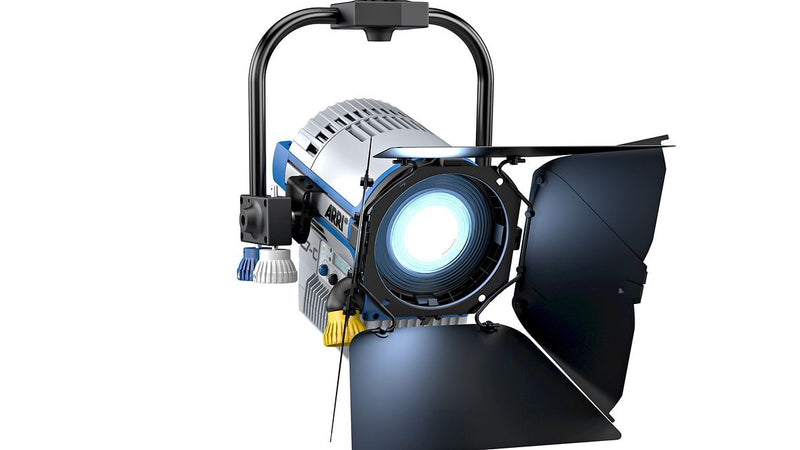

ARRI L7-C LED Fresnel Pole Op Blue/ Silver New Powercon Version
All Prices Shown are Excluding GST.
ARRI L7-C Pole Operated
Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000 K, between full plus or minus green and RGBW colors.
LIGHT ENGINE 2
L7-Cs with the new LE2 are 25 % brighter than previous L7-C versions.
STAND-MOUNT
versions include the following base configuration: 28 mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.
HANGING
versions include the following base configuration: 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.
POLE-OPERATED
versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.
Technical Data
| Category | LED |
| Series | L-Series |
| Model | L7-C |
| Optical System | Focusable Fresnel |
| Light Aperture / Lens Diameter in mm | 175 mm |
| Light Aperture / Lens Diameter in inch | 7.0" |
| Beam Angle | 15° to 50° Half Peak Angle |
| Weight in kg net* | Manual Version: approx. 8.2 kg Pole Operated Version: approx. 10.0 kg |
| Weight in kg packed* | Manual Version: approx. 14 kg Pole Operated Version: approx. 14 kg |
| Measurements (HxWxL) incl. Pin in mm* | Manual Version: 571 x 374 x 351 mm Pole Operated Version: 582 x 357 x 351 mm |
| Measurements (HxWxL) excl. Pin in mm* | Manual Version: 438 x 374 x 351 mm Pole Operated Version: 467 x 357 x 351 mm |
| Measurements (HxWxL) Packed size in mm* | 540 x 500 x 380 mm |
| Handling | Adjustable Sliding Stirrup, High-Strength Tilt Lock / Pole Operation Option (Pan, Tilt and Focus) |
| Mounting | 28 mm Spigot (Junior Pin) |
| Tilt Angle | +/- 90° |
| Lamphead Voltage Input | 100 to 240 V ~, 50/60 Hz |
| Power Consumption | 220 W Maximum |
| Power Connection | powerCON TRUE1 (Bare Ends / Schuko / Edison) |
| Battery Connector | - |
| Battery DC Voltage Range | - |
| White Light | 2,800 K to 10,000 K continuously variable correlated color temperature |
| Coloured Light | Full RGB+W Color Gamut with Hue and Saturation Control |
| Color Temperature Tolerance | +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) |
| Color Rendition | CRI Average > 94, TLCI Average > 90 |
| Green-Magenta Adjustment | Continuously adjustable (Full Minusgreen to Full Plusgreen) |
| Dimming | 0 to 100 % continuous |

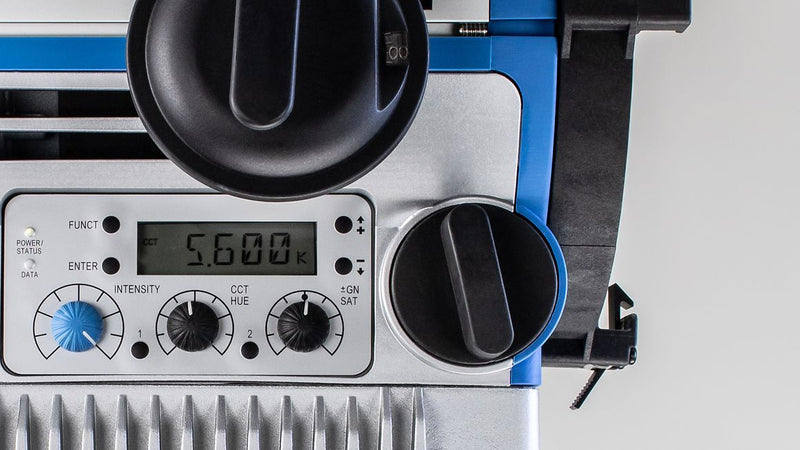

| Control | 5-Pin DMX In and Through, On-Board Controller, Mini-USB |
| Wireless Control | Not integrated, via SkyLink |
| Remote Device Management (RDM) | DMX Setup, Hour Counter and Standard RDM Commands |
| Software / Mini-USB Interface | DMX Setup, Fixture Status and Firmware Upgrade through PC |
| Housing Color | Blue/Silver, Black |
| Ambient Temperature Operation | -20 to +45° C (-4 to +113° F) |
| Protection Class / IP Rating | I / IP20 |
| Estimated LED Lifetime | 50,000 hours |
| Estimated Color Shift Over Lifetime (CCT) | +/- 5 % |
| Certifications | CE, CB, GS, cNRTLus, FCC, PSE |
